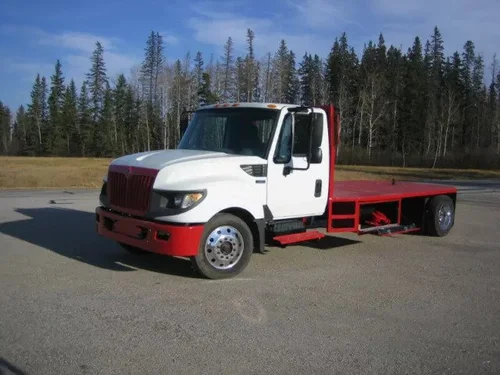

This is a custom built low profile truck that we just completed and is now ready to go to work and / or play !
Like all the units we build it is a unique one of a kind truck.
The HD deck is all steel with only new components. It can be used in most any configuration.
Deck on truck is a 14 ft flat deck with headache rack. It comes with a Binkley 30,000 lb 5th wheel plate that is removable. Also a 30,000 lb, 2 5/16 " thread in ball for pulling gooseneck trailers as well. On the HD tail skirt there is a super tough 2 1/2" receiver built into the 1/2" plate steel tail skirt and integral bumper. Hide away safety chain links built into deck. Side tie down rails. Steps on both sides of the deck and a 48" underbody storage box under drivers side
This receiver will accommodate any type of hitch you wish to pull with. The deck is long enough that you can pull a trailer as well as load the deck.
These are designed so you can use them for work and still very nicely pull your RV around on holidays.
The truck has a 6.4 liter turbo , 300 HP IHC diesel , Allison 5 spd automatic transmission with pto capability , air ride suspension and hydraulic disc brakes so only a class 5 is required to drive it. Low profile 19.5 rubber on Alco aluminum wheels.
TrueTrac diff lock.
213" wheel base,
3.91 rear axle ratio.
Scaled tare weight as shown here is 5070 kg
Axle rating for front axle is 7000 lbs and rear axle is 13,500 lbs. Factory GVWR is 19,000.
It has been fully serviced with all new filters and synthetic 5/40 oil.
The drivers seat is also air ride. Super nice easy truck to drive and lots of power. Power window and door locks, AC, Cruise, Tilt and telescope wheel, Air ride seat, Sirus , am, fm, cd radio. Heated mirrors. Intermittent wipers,
Governed for 140 kph
Please take a good look at photos and if you have more questions simply contact me,
The truck has a fresh CVIP just done.
Dan 780 297 8757
SandHills Equipment Sales, Cherhill, Alberta
